What is a Network TAP? A Comprehensive Guide to Network Visibility

See Every Packet, Miss No Threat: Network TAPs Uncovered

Every second, millions of data packets race through your network - carrying your most critical business information. But how do you monitor this invisible traffic without disrupting its flow? Network TAPs (Test Access Points) act like a one-way mirror for your network, creating perfect copies of every packet while remaining completely invisible to your data stream. For organizations where every packet matters - from financial institutions processing trades to healthcare providers protecting patient data - this complete visibility becomes the difference between detecting threats in real-time and discovering them months after a breach.

Types of Network TAPS

Active TAP: Think of active TAPs as intelligent intermediaries in your network. These powered devices do more than just observe - they regenerate and strengthen signals, convert protocols, and handle advanced packet manipulation. Perfect for copper networks or when your signals need a boost, active TAPs ensure you never miss a beat, even in complex network environments.

Passive TAP: Meet the silent observers of your network. Passive TAPs use simple physics - splitting light signals without requiring power - to create perfect copies of your network traffic. With zero latency and no point of failure, they're the go-to choice for fiber optic networks where pure, unaltered monitoring is essential. Consider them your network's most reliable witness.

How does a Network TAP Work? Technical Foundation

At its most fundamental level, a Network TAP interfaces directly with your network cables, creating a permanent in-line connection between two points in your network - typically between switches, routers, or other network devices. When data flows through this connection, the TAP creates an identical copy of the traffic.

The true power of Network TAPs lies in their ability to capture every single packet, including malformed packets and physical layer errors that other monitoring solutions might miss.

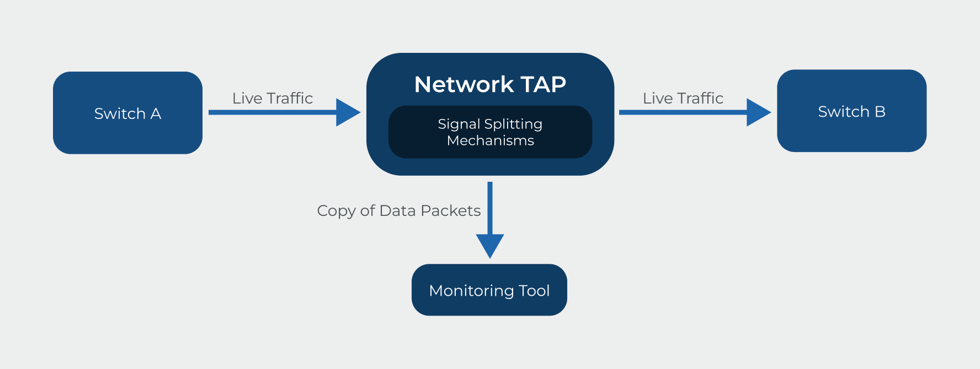

How a Network TAP Works

Key Performance Metrics

100% Traffic Capture

Copies all data packets including layer 1 & 2 errors, malformed packets and VLAN tags

Zero-Latency Operations

<1 nanosecond delay for passive TAPs, ensuring no impact on network performance

Speed Capacity

Supports full line-rate monitoring 1G to 400G without packet loss

Signal Quality

Maintains optical power budget with typical insertion loss of 3.0 to 4.5dB

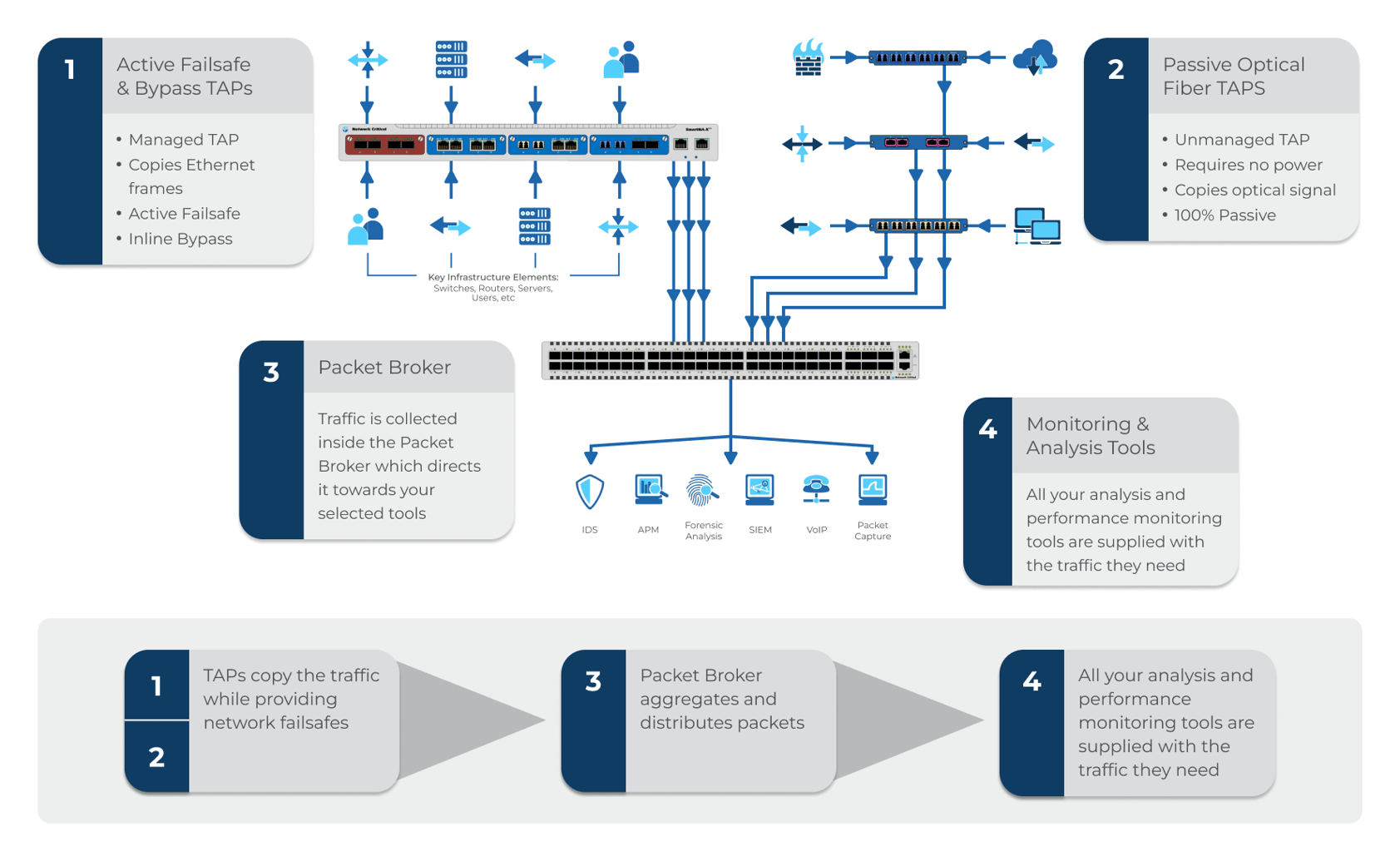

From Capture to Intelligence: Network Packet Brokers Amplify TAPs

While Network TAPs provide bit-perfect copies of your data streams at line rate, Network Packet Brokers transform these raw packet captures into precisely filtered and aggregated intelligence. Think of TAPs as your network's line-rate packet replication engines, and Network Packet Brokers as the intelligent traffic orchestration layer that aggregates, filters, and load-balances these packet streams to your security and performance monitoring tools with zero packet loss.

Operating at speeds up to 400G, they function as an intelligent traffic optimization layer - aggregating multiple TAP feeds, applying granular filtering rules, and distributing specific traffic flows to your analysis tools through precise load-balancing algorithms.

This powerful combination transforms basic packet capture into an intelligent visibility architecture that:

Filters out noise and zeroes in on relevant traffic
Distributes network data to multiple monitoring tools simultaneously
Balances traffic loads to prevent tool oversubscription
Optimizes the performance of expensive security and monitoring solutions

TAP vs SPAN: Comparison & Cost-Benefit Analysis

The fundamental difference lies in how each solution handles packet capture. Network TAPs operate as purpose-built hardware devices that create perfect copies of network traffic, capturing every packet that crosses the wire. SPAN ports represent the built-in monitoring capability of network switches, offering a software-configured way to copy and analyze network traffic. These ports leverage the switch's existing hardware to mirror traffic to monitoring tools, making them an appealing option for organizations looking to implement basic monitoring without additional hardware investments. However, this convenience comes with important trade-offs that network architects must carefully consider.

Consider the real costs of visibility gaps in modern networks. While SPAN ports leverage existing infrastructure with no immediate hardware costs, there are potential hidden costs from overloaded ports and dropped packets that can lead to bad decision making. TAPs, while requiring an upfront investment ranging from sub $400 for a single fiber TAP to sub $800 per port for fully featured access modules, provide safe, secure access to links with 100% of network traffic, along with essential filtering and load balancing features. This complete visibility becomes particularly critical in environments requiring compliance audits, such as those governed by GDPR, Basel III banking requirements, healthcare regulations like HIPAA and ACA, or financial services requirements under Dodd-Frank.

Future-Proof Architecture

With support for speeds from 1G to 400G, TAPs provide a scalable foundation for your network visibility. As your network grows and speeds increase, your TAP infrastructure continues to deliver reliable monitoring capabilities without requiring replacement.

BP Secures Critical Infrastructure Without Compromising Performance

Network Critical helped one of the world's largest energy companies achieve complete network visibility across their complex OT and IT infrastructure by implementing our passive fiber TAPs and network packet brokers.

This deployment demonstrates how our solutions bridge the gap between operational demands and security requirements in mission-critical environments. Like many of our global energy sector clients, BP gained comprehensive visibility without compromising system performance or reliability.

BP quote

Key Insights

Secured critical control systems without impacting operations
Enabled 24/7 monitoring of equipment, firmware, and network traffic

Reduced security risks while maintaining zero-latency performance
Achieved regulatory compliance requirements
Connected multiple security and monitoring tools seamlessly

Network TAP Implementation: Best Practices for Success

Through careful attention to these technical considerations, you can achieve a robust, reliable TAP implementation that provides the network visibility you need while maintaining network performance and reliability.

Power Budget Management: Before installation, calculate your end-to-end link loss budget, factoring in the TAP's insertion loss, which typically ranges from 3.0 to 4.5dB. Split ratio selection depends heavily on your network speed - modern 10G/40G/100G networks generally perform well with 50/50 splits when light levels are sufficient, while 1G networks or situations with tighter light margins may benefit from 70/30 ratios. Your transceivers must provide enough power margin to accommodate the total link loss while maintaining reliable operation.

Monitoring Port Setup: Your monitoring tools must align with network speed and duplex settings to ensure accurate traffic capture. For active TAPs, proper heartbeat packet configuration becomes essential for maintaining network health monitoring. When implementing packet slicing for specific monitoring requirements, careful configuration ensures you capture the necessary packet segments while optimizing tool performance.

High Availability Design Demands Redundancy: Where available, redundant power supplies provide essential protection against power-related failures. Active TAPs require properly configured failover mechanisms, which should be thoroughly tested during scheduled maintenance windows. Documented recovery procedures for various failure scenarios ensure quick resolution when issues arise.

Performance Verification: Test your setup with known traffic patterns, verify zero packet loss across network ports, and ensure your monitoring tools receive all traffic types as expected. Pay special attention to physical layer error capture - proper TAP implementation should maintain visibility of these crucial indicators of network health.
